About the differences between various models of TI's new generation processor AM62x

1. Model Overview

·  AM623x: Designed for low-power applications, suitable for basic embedded tasks. It offers higher processing capabilities and more memory options, making it suitable for more complex applications.

·  AM625x: A high-performance processor designed for applications requiring higher computational power. It enhances image processing capabilities based on the AM623 series, making it suitable for vision-related applications. It provides the highest processor performance and peripheral support, suitable for the most complex embedded systems.

2. Performance Comparison

2.1 CPU Cores

· AM6231, AM6251: Typically equipped with a single core, suitable for general embedded computing needs.

· AM6232, AM6252: Equipped with more cores, specifically dual-core, supporting higher concurrent processing capabilities.

· AM6234, AM6254: These models are generally equipped with four cores, capable of handling more complex computational tasks.

2.2 Clock Speed

The clock speed of the AM625 series is the same as that of the AM623 series.

3. GPU Support

· AM6231, AM6232, AM6234: These models do not include a GPU but can handle basic graphical displays.

·  AM6251, AM6252, and AM6254: Support a GPU with 8 GFLOPs, compatible with OpenGL 3.x/2.0/1.1 + Extensions, Vulkan 1.2, meeting various complex graphical display needs such as QT.

4. Security and Reliability

4.1 Security Features

Integrates advanced security features, such as hardware encryption and secure boot, suitable for applications with high security requirements.

4.2 Reliability

All models are optimized for stability during long-term operation, particularly performing well in industrial applications.

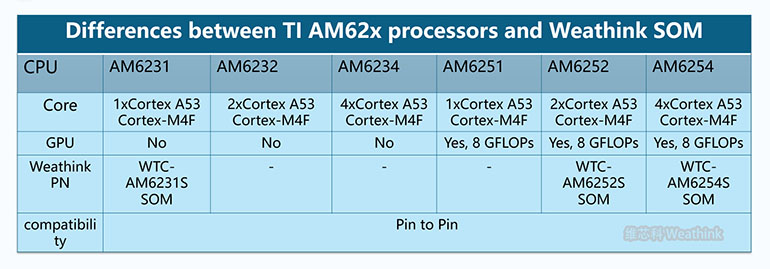

5. Summary of Differences

AM6231, AM6232, AM6234, AM6251, AM6252, and AM6254 differ to varying degrees in performance, power consumption, peripheral support, and security. Choosing the appropriate model based on specific application needs can help developers achieve more efficient system designs. A deeper understanding of these differences during product development aids in making more informed technical choices, ensuring successful project implementation.

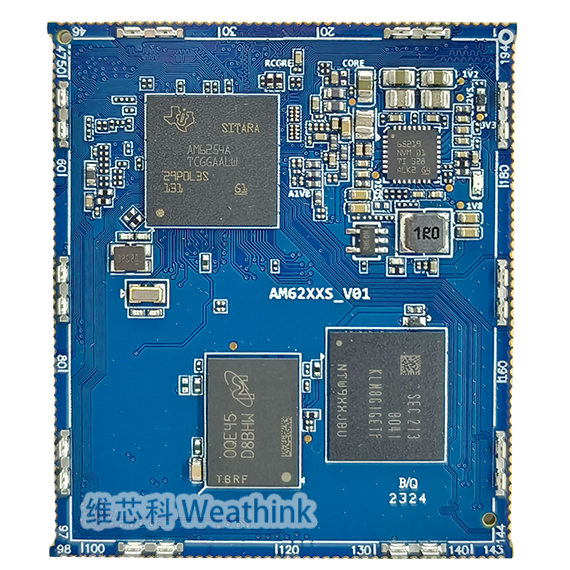

6. Introduction to the Weathink AM62x SOM

AM62XXS core board is an embedded core board launched by Weathink using TI AM62x series as the core. Hangzhou Weathink  Electronics Co., Ltd. is a professional SOM  manufacturer. This series of devices is based on ARM Cortex-A53 core, with high performance, low power consumption, multiple interfaces, low cost and other characteristics. It also provides 3D graphics acceleration and integration of key peripherals to meet various application needs, support mainstream DDR4 memory, and provide dual-channel Gigabit Ethernet and multiple serial ports to meet the needs of industrial products.
