Features
- CPU：TI AM62X Cortex A53 single core/dual core/quad core
- ARCH：Cortex A53
- Frequency：1.4GHz
- Memory：2GByte DDR4 Industrial Grade (1GByte Replaceable)
- Flash：8Gbyte eMMC
- Display Interface：Supports HDMI、LVDS、EDP
- Communication Interface：Dual Gigabit Ethernet、3*CAN、2*RS485、2* RS232
- Operating Systems：Linux、Android
Temperature Class：-40°C~+85°C
Power Supply：Wide Voltage Supply of 9-24V
The AM62XXS industrial control board is an industrial grade product launched by Weathink, which is mainly matched with the Weathink AM62XXS industrial core board. The Hangzhou Weathink AM62XXS core board is based on the ARM Cortex-A53 microprocessor from TI, and has high performance, low power consumption, multiple interfaces, low cost and other characteristics. It also provides 3D graphics acceleration and integration of key peripherals to meet various application needs, supports mainstream DDR4 memory, and provides dual gigabit Ethernet and multiple serial ports to meet the needs of industrial products.
This industrial control board consists of two parts: the AM62XXS core board and the AM62XXS industrial control bottom board. Equipped with LVDS、HDMI display interface、2*Gigabit Ethernet、2*RS232、2*RS485、3*CAN-FD、USB2.0 Host、WiFi、4G、SD card、Audio、SPI、ADC、I2C、GPIO、Backlight etc.
Product Picture:

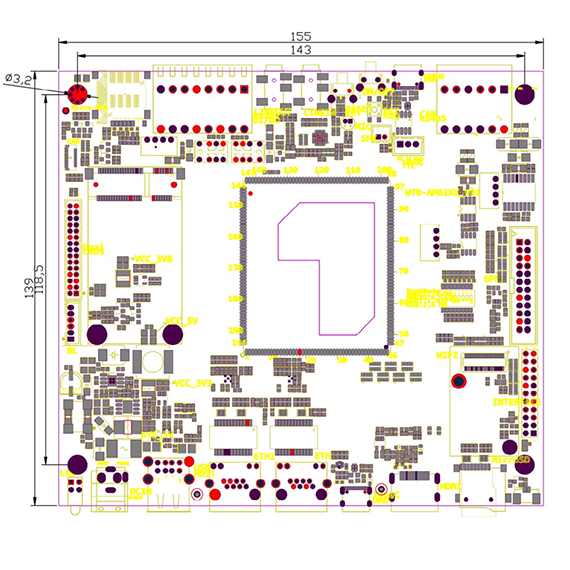

Structural Layout:
Interface Introduction:
Num | Functional Description | Num | Functional Description | Num | Functional Description |
1 | RTC battery Interface | 11 | LVDS Interface | 21 | CAN/RS485 extended Interface2 |
2 | SD Card | 12 | Mini-PCIE | 22 | Reset Hot Reset Button |
3 | HDMI | 13 | Camera Interface | 23 | MIC Microphone |
4 | USB OTG Type-C | 14 | SIM Card | 24 | SPK Speaker Interface |
5 | ETH2 Ethernet | 15 | RS232/GPIO extended Interface1 | 25 | TTL Serial Debug |
6 | ETH1 Ethernet | 16 | Line-OUT Interface | 26 | GPMC Expansion Interface3 |
7 | 2 x Host USB port | 17 | Line-IN Interface | 27 | Boot Mode The Dial Switch |
8 | Power Socket 2.5mm | 18 | Reset Cold Reset Button | 28 | WiFi Module Interface |
9 | LED Display Light | 19 | The ON/OFF Button | 29 | TP/IIC/SPI extended Interface 4 |
10 | LCD Backlight | 20 | Debug USB Type-C |
