Features
- CPU：TI AM62X Cortex A55 Quad Core
- ARCH：Cortex-A55
- Frequency：1.4GHz
- Memory：2GByte DDR4 Industrial Grade (1GByte Replaceable)
- Flash：8Gbyte eMMC
- Display Interface：Supports MIPI DSI、HDMI、LVDS、EDP
- Communication Interface：Dual Gigabit Ethernet、3*CAN、2*RS485、2* RS232
- Operating Systems：Linux、Android
Temperature Class：-40°C~+85°C
Power Supply：Wide Voltage Supply of 9-24V
RK3568S industrial control board is an industrial-grade product launched by WTK, which is mainly used to match the WTK RK3568S industrial core board. Hangzhou WTK RK3568S core board is based on the ARM Cortex-A55 microprocessor of Rockchip company, which has the characteristics of high performance, low power consumption, multi-interface and low cost. At the same time, it provides 3D graphics acceleration and integration of key peripherals, which can meet the needs of various applications. It supports mainstream DDR4 memory, and provides dual-channel Gigabit Ethernet and multi-channel serial port to meet the needs of industrial products.
The industrial control board is composed of two parts: RK3568S core board and RK3568S industrial control board. It is equipped with LVDS, HDMI display interface, 2*Gigabit Ethernet, 2*RS232, 2*RS485, 2*CAN, USB2.0 Host, WiFi, 4G, SD card, audio input and output interfaces, and supports external expansion SPI, ADC, I2C, GPIO, backlight, etc.
Product Picture:

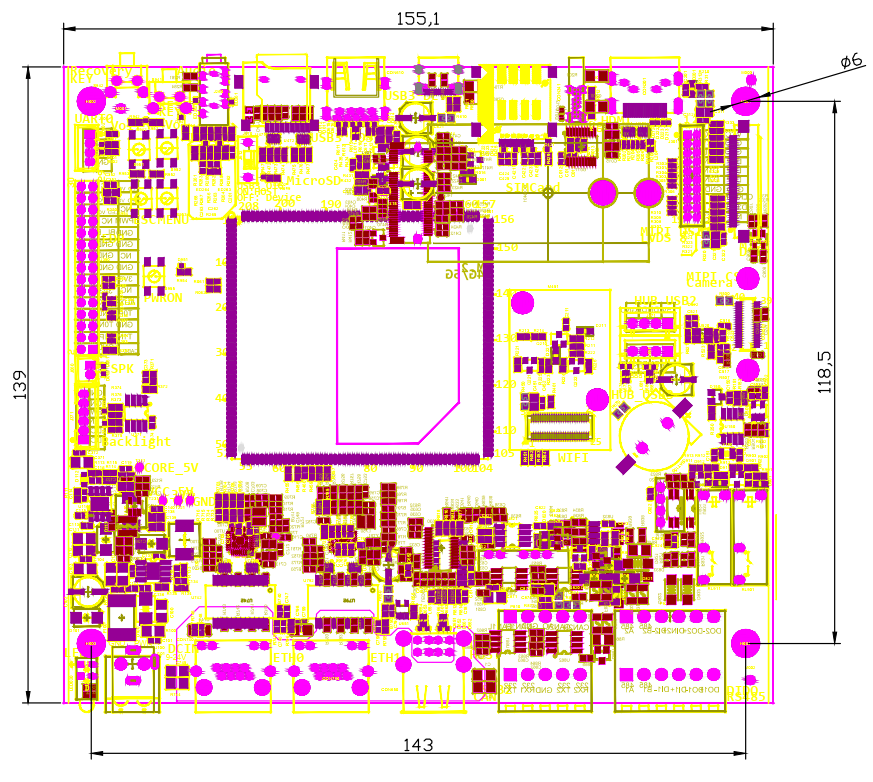

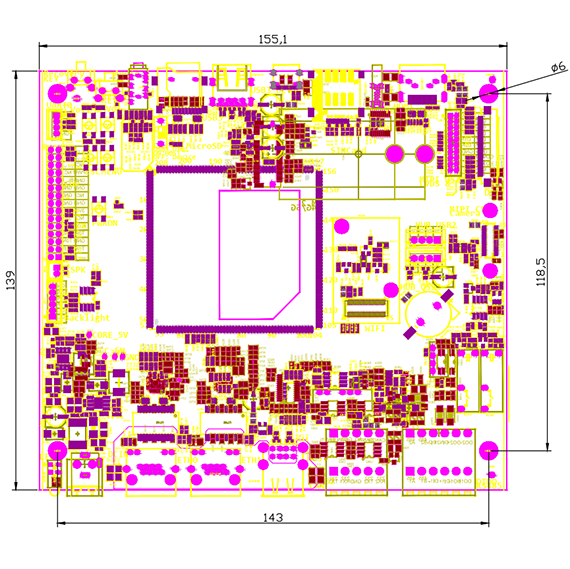

Structural Layout:
Interface Introduction:
Num | Functional Description | Num | Functional Description | Num | Functional Description |
1 | LED Display Light | 11 | Host USB port | 21 | Audio Headphone Jack |
2 | Power Socket 2.5mm | 12 | MIPI DSI Interface | 22 | Reset Button |
3 | ETH0 Ethernet | 13 | MIPI DSI/LVDS8 Interface | 23 | Recovery Button |
4 | ETH1 Ethernet | 14 | HDMI Interface | 24 | UART0 Serial port |
5 | 2 x Host USB port | 15 | USB Debug Interface | 25 | EDP Interface |
6 | RS232/CAN extended Interface1 | 16 | SIM Card | 26 | KEY Button |
7 | RS485/IO extended Interface2 | 17 | USB Device Type-C | 27 | SPK Speaker Interface |
8 | WiFi Module Interface | 18 | USB3.0 HOST | 28 | LCD Backlight |
9 | Host USB port | 19 | SD Card | 29 | Mini-PCIE Interface |
10 | Camera Interface | 20 | USB Mode Switch |
Core Board Software Parameters:
Linux kernel | Linux5.10, Android12 | |
Filesystems | Yocto | |
Support Driver | DDR4 | eMMC Flash |
MMC/SD | Audio | |
LCD MIPI/HDMI out | Ethernet | |
USB | UART | |
PWM | RS485 | |
USB 4G | I2C | |
RTC | LVDS | |
SDIO WIFI | MIPI CSI | |
KEY | TouchScreen | |
G2L Industrial Control Board Datasheet：
RK3568S Industrial Control Board Hardware Design Use Guidance.pdf
