Features
CPU：RK3568
ARCH：Cortex-A55
Frequency：1.8GHZ
Memory：512MB/1GB/2GB DDR4
Flash：8Gbyte eMMC
Operating System：Linux/Android
Interface: Stamp Hole
RK3568S core board is an embedded core board using Rockchip RK3568 series as the core MPU launched by our company. Based on ARM Cortex-A55 core, this series of devices has the characteristics of high performance, low power consumption, multi-interface and low cost. At the same time, it provides 3D graphics acceleration and integration of key peripherals, which can meet the needs of various applications. It supports mainstream DDR4 memory, and provides dual-channel Gigabit Ethernet and multi-channel serial port to meet the needs of industrial products.
Electrical Parameters
Projects | Parameter Description | Describe |
CPU | Rockchip RK3568B/RK3568J | Standard |
Frequency | RK3568B Quad Cortex-A55@2.0GHz RK3568J Quad Cortex-A55@1.8GHz | Standard |
GPU | •Mali-G52-2EE •OpenGL ES 1.1、2.0、3.2、Vulkan 1.0,1.1、OpenCL 2.0 | Standard |
Memory | 1GByte/2GByte/4GByte DDR4 | Selected |
ROM | 8GByte / 16GByte / 32GByte eMMC Flash | Selected |
NPU | 1 TOPS | Standard |
Power Supply | PMIC Power Management | Standard |
Pin | 202Pin，Spacing 1.0mm | Standard |
Structural Dimensions
Items | Content |
Core board size | 56 mm * 53 mm * 2.85 mm |
Interface mode | 1.0mm spacing stamp hole (208pin) |

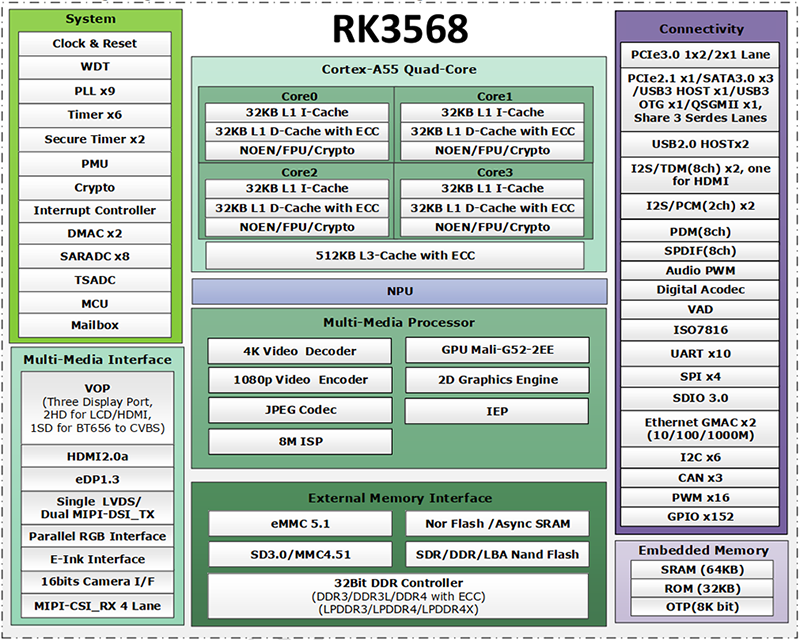

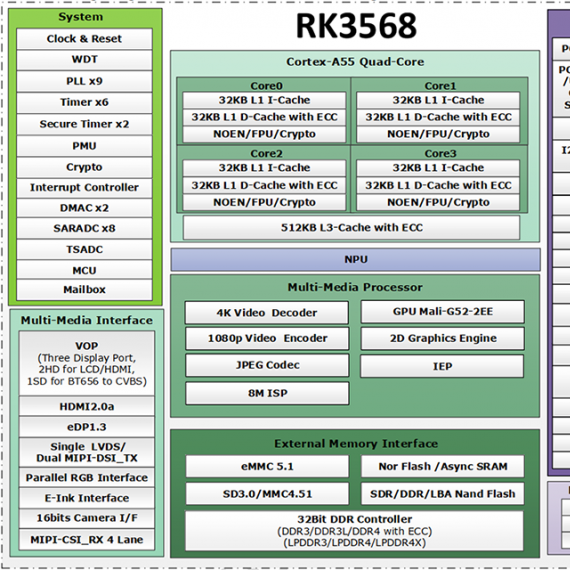

Block Diagram
Interface Parameter
Interface | Parameter |
MIPI-DSI | Resolution up to1920x1080@60Hz |
HDMI | Resolution up to1080p@120Hz or 4096x2304@60Hz |
LVDS | Single-channel output，resolution up to1280x800 |
EDP | Support eDP 1.3，resolution up to 2560x1600@60Hz |
CAMERA | 1*DVP interface，1*4 Lanes MIPI-CSI interface |
UART | 10*UART，up to 4Mbps |
CAN | 3*CAN2.0 B |
SPI | 4*SPI，up to 50MHz |
I2C | 5*I2C，supports 7bits and 10bits address modes，up to 1Mbit/s |
PWM | 32bits timer/counter |
PCIE 2.1 | PCIE 2.1，up to 5.0Gbps，RC mode |
PCIE 3.0 | PCIE 3.0，1x2Lanes or 2x1Lane，each lane up to 8.0Gbps |
USB2.0 | 2*USB HOST，separate but not multiplexed with USB3.0. |
USB3.0 | 1*USB3.0 HOST，1*USB3.0 OTG. |
Ethernet | 2*10/100/1000Mbps auto-negotiation, RJ45 connector. |
Audio | 1*8ch I2S/TDM，2*2ch I2S，1*8ch PDM |
SDIO | SDIO 3.0，data throughput up to：104MB/S |
Working Environment
Sequence | Environment | Minimum | Typical | Maximum |
1 | Power supply | 4.5 V | 5V | 5.5 V |
2 | Power consumption at work | / | / | 800mA |
3 | Operating temperature (industrial grade) | -40°C | / | +85°C |
4 | Operating temperature (commercial grade) | 0°C | / | +80°C |
5 | Humidity range (no condensation) | 10%RH | / | 90%RH |
Linux kernel | Linux5.10, Android12 | |
Filesystems | Yocto | |
Support Driver | DDR4 | eMMC Flash |
MMC/SD | Audio | |
LCD MIPI/HDMI out | Ethernet | |
Usb/start | UART | |
PWM | RS485 | |
USB 4G | I2C | |
RTC | LVDS | |
SDIO WIFI | MIPI CSI | |
KEY | TouchScreen | |
Please contact local sales.
Model Number | Description |
WTC-RK3568S-A | RK3568S core board 1.8GHZ, 1GB DDR4, 8GB eMMC |
The above model is the standard configuration, the other configuration can be customized, but there are MOQ requirements, please consult sales for details.
