Features
CPU: I.MX6
Architecture: Cortex A9
Main frequency: 1GHz
Memory: 1Gbyte
Flash: 8Gbyte
Operate system: Android

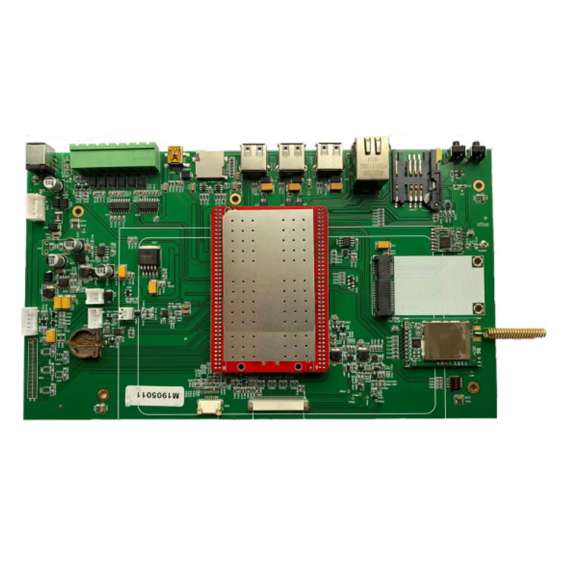

The motherboard was developed by Hangzhou Weathink Electronics Co., Ltd. The dual-core streamlined series CPU is the core of the Cortex-A9 inside, and the main frequency is as high as 1GHz. The motherboard supports the RGB interface LCD and precise capacitor screen, the motherboard supports 4G full Netcom Module, and the board has LoRa communication Module.
Introduction to electrical parameters:
interface | describe |
CPU | I.MX6DL |
Operating temperature | -20℃~+70℃ |
Architecture | ARMv7 Cortex-A9 |
Main frequency | 1GHZ |
Memory | 1Gbyte DDR3 |
ROM | 8Gbyte eMMC |
Size | 240mm*137.7mm |
Relative humidity | 10%～90%（不结露） |
Operating Voltage | 9-15Venter，典型12V供电 |

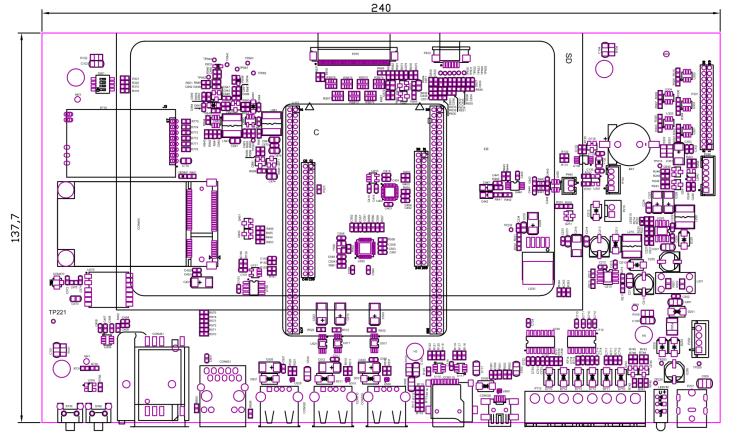

Mechanical Dimensions:
Software parameter
AndroidVersion | Android 4.4.2 |
Burn | USBFast burning |
Development environment | Ubuntu16.04 |
AndroidCore | eMMCDrive（8G） |
RTCDrive | |
IODrive | |
SPIDrive | |
I2CDrive | |
USB UVCCamera Drive | |
PWMcontrolDrive | |
Capacitor touch Drive | |
Ethernet,(AR8031，1000/100/10Mbps) | |
Audio Drive, supportSGTL5000 | |
4G，ME909s-821 | |
WiFi，RTL8189 | |
HDMIDrive | |
USB Device | |
USB OTG | |
LVDSSingle and double road DRIVE | |
USBDriver | |
Serial port drive：5个 | |
SD/MMCCard Drive: Maximum supportable64GB |
Function parameter:
CPU | NXP I.MX6DL |
Architecture | ARMv7 Cortex-A9 |
2D/3D | support |
Graphic processor | ARM Mail-G31 |
LCD | support24bitRGBinterface |
TP | capacitanceTouch screen interface |
VideoEncoder | Hardware codec |
4G | Support minipcieinterface4G module |
SIM card | Slot SIMCrard，Big card |
LORA | Banlo LoRaModule |
WIFI | 802.11b/g/n，RTL8189 |
Ethernet | 1roid Gigabit Ethernet10/100/1000M |
USB2.0 HOST | 3RoadHOSTAinterface |
USB2.0 OTG | 1RoadUSB OTG |
SD/MMC | Elective MicrosdCard interface |
RS232Serial port | 3Road |
LVDS | Double8LVDS signal interface, maximum support1920*1080 |
RTC | Board RTC |
WTS-IMX6D: IMX6 Industrial Control Board
